DMX553DABS
Digital AV Receiver • 6.8" WSVGA Display • Wired Apple CarPlay®/Android Auto™ & iPhone & Android Screen Mirroring • DAB+ Tuner
Buy Now AT HALFORDS
Key Features
| 6.8" WSVGA Display with Capacitive Touch Panel. |
| Wired Apple CarPlay® & Android Auto™ - Connect via USB |
| Wired iPhone / Android USB Mirroring. |
| Built-in DAB+ Digital radio Tuner |
| Built-in Bluetooth® technology for Handsfree calling & Audio Streaming. |
| High Current 2.1A Charging USB port. |
| Front & Rear + Subwoofer (Mono) Preouts - 2.5V |
| 13 Band EQ & Digital Time Alignment |
| Rear View Camera Input with Parking Guidelines |

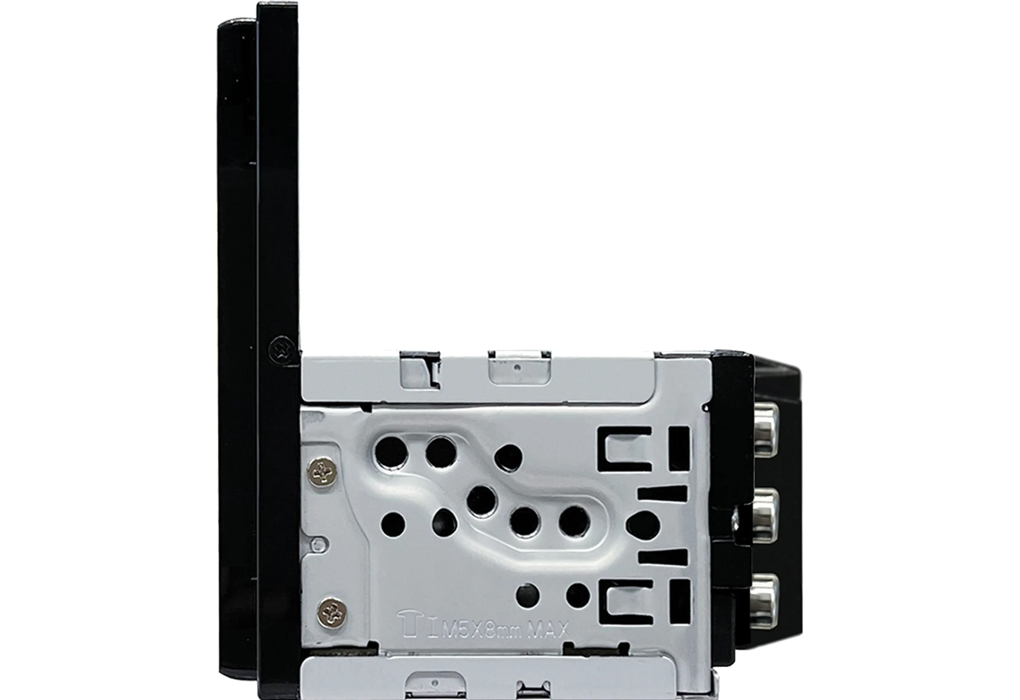

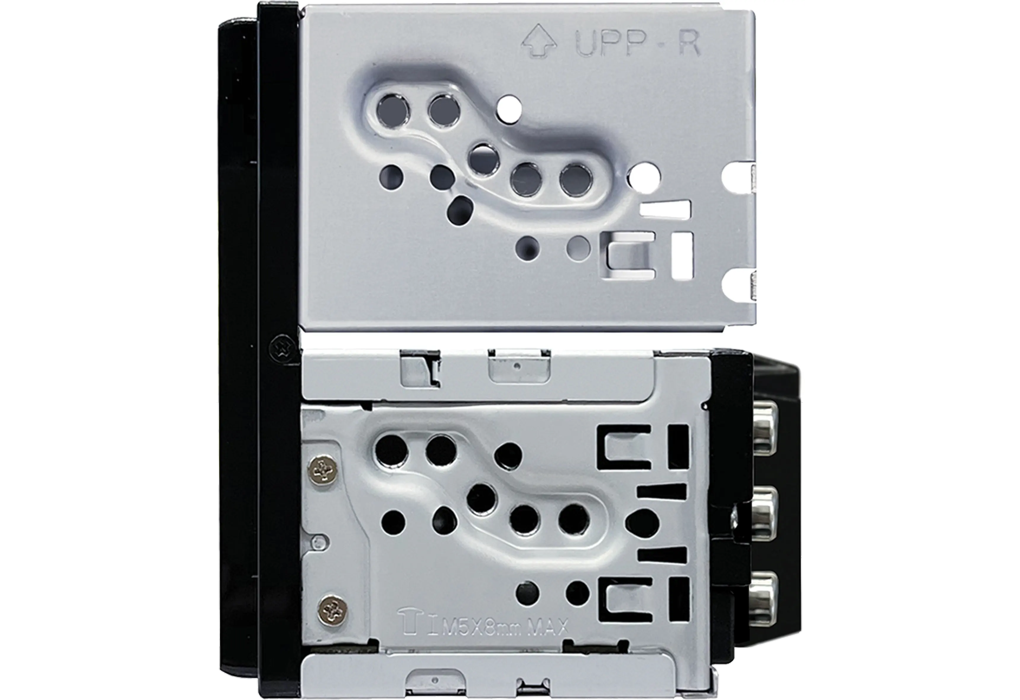

| Single DIN Short Chassis Design for easy installation |
General Features
| DIN Size | 2 DIN |
| Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | White color |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Optional IR remote controller | Yes, (KNA-RCDV331) |
| Digital Clock (24H) | Yes |
| Built-in Bluetooth | Yes |
| DAB Tuner Built-in | Yes |
| Made for iPhone | Yes |

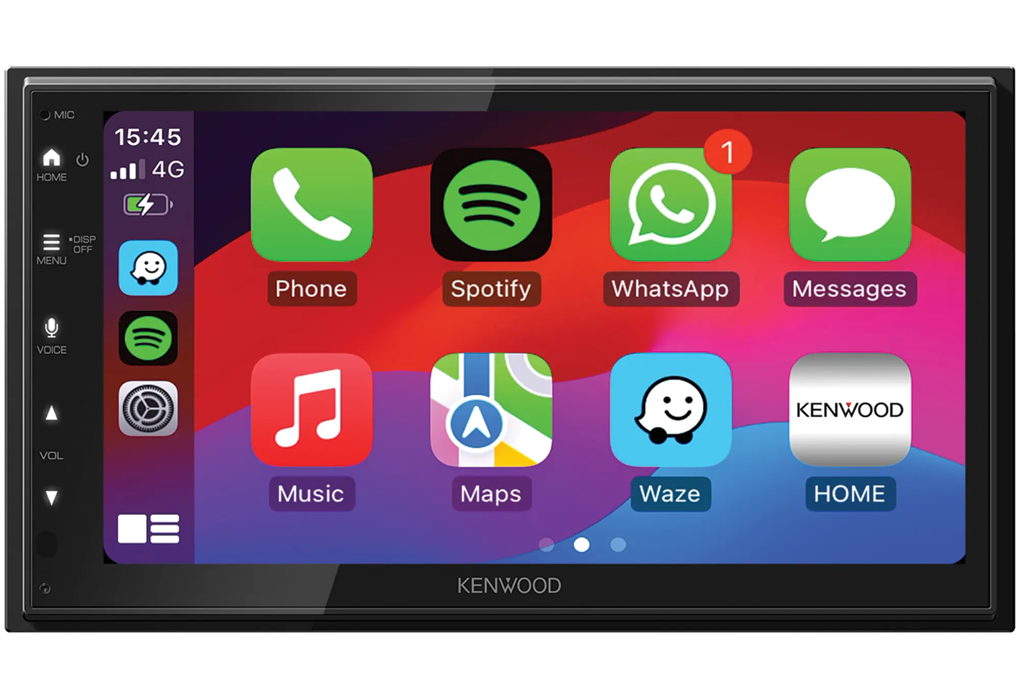

| Works with Apple CarPlay | Yes |

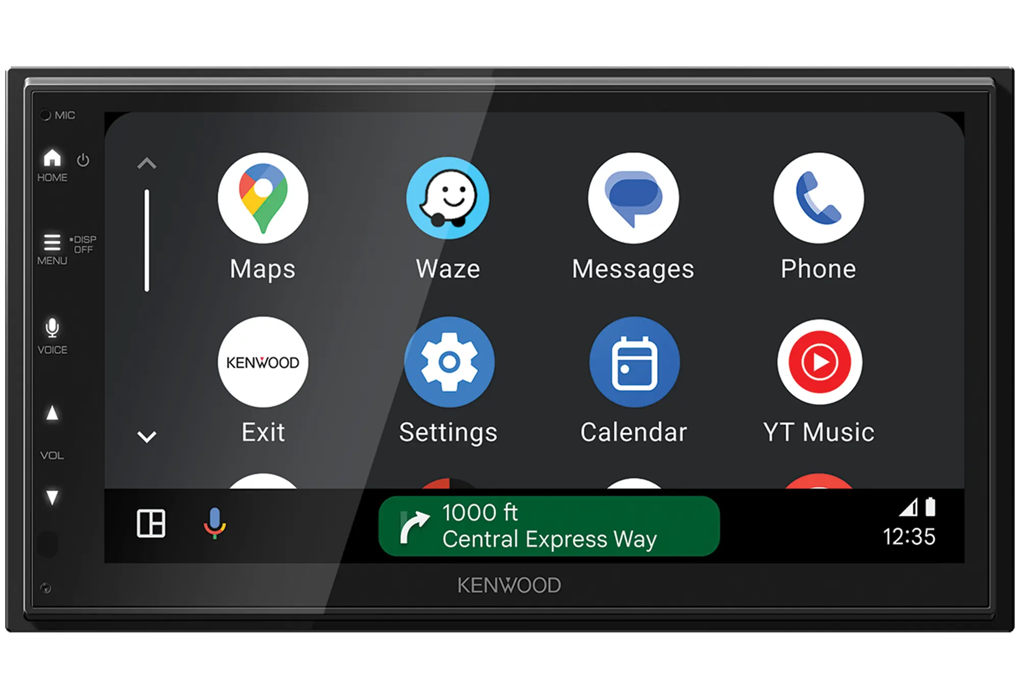

| Works with Android Auto | Yes |
| Android USB Mirroring | Yes |
| Firmware upgreadable | Yes |
Monitor Features
| Screen Type | 6.8" Wide VGA |
| Display Type | Glare |
| Display Panel | Capacitive |
| Display film | Anti Fingerprint |
| High Resolution WSVGA Screen | 1024 x 600 pixel |
| LCD backlight | White LED |
| Display Mode | 3 Mode (Normal(default) / 16:9 / 4:3) |
| Screen Adjustments | Brightness / Tint / Color / Contrast |
| Dimmer function | Manual/Sync |
| Dimmer Level | Auto/On/Off |
| Visual Source Mode | Mirorring / CarPlay / Android Auto. |
| Mechanism type | Fixed |
| NTSC/PAL judge | Yes (Auto) |
| Display Off Mode | Yes |
Multimedia GUI Features
| OSDC Type | Graphic |
| Menu text | 14 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Hebrew ► Greek ► Polish ► Czech ► Hungarian |
| Demonstration Mode | Yes |
| Top Menu Customize | Yes |
| Opening Screen Type | standard |
| Wallpaper customizable | 6 x presets + 2 x user set |
| R-CAM interrupt | Yes |
| R-CAM Parking Guide Lines | Yes, Built-in, customizable |
Tuner Features
| FM Reception | Yes |
| AM (MW/LW) Reception | Yes |
| Tuning mode | Auto1/Auto2/Manual |
| Up/Down Seek/Scan | Yes |
| Tuner Presets (FM/AM) | 36 Presets (24FM / 12AM) |
| Automatic Memory Entry (AME) | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
CE DAB tuner features
| DAB+ tuner built-in | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| Seamless DAB-FM blending | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 15 ch * 1 bank presets, |
| Alphabet Search | Yes |
| Service list by alphabet order | Yes |
| Intelligent seek | Yes |
| Announcement Switching (ASW) Select | Yes |
| DLS (Dynamic Label) | Yes |
| PTY (Programme Type) search | Yes |
| Slide Show | Yes |
| Soft linking | Yes |
| Antenna power supply on/off switch | Yes |
| Digital Radio Certification Mark | Yes |
Bluetooth General Features
| Hands Free Profile (HPF) | Ver. 1.8 |
| Audio Streaming (A2DP) | Yes, (SBC/AAC) |
| Simple Secure Pairing (SSP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| PBAP call history | Up to 20 entries of dialed, received and missed calls |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V1.6 |
| iPhone & Android automatic pairing via USB | Yes |
| Private mode | Yes |
| Interrupt call request | Yes |
| Voice Control | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| High-quality noise canceling microphone | built-in |
| Bluetooth firmware upgradeable | Yes, Included in system updates |
Playable Audio File
CE_Playable Video file
| MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB |
| WMV files are playable | USB |
| H.264 files are playable | USB |
| mkv files are playable | USB |
USB Features
| USB Type | 2.0 High speed |
| Yes | |
| Drive Change | Yes |
| File System | FAT16 / FAT32 / exFAT / NTFS |
| Tag Information Display | Yes |
| Album Art Display | Yes |
| Repeat Play | Folder/File/All |
| Random play | Folder |
| Category search | Yes |
| Link Search | Yes |
| Last Position Memory / Resume | Yes |
| Time code display | Yes |
| USB ports maximum output current | 2.1A |
iPhone Features
| Connection via: | USB / Bluetooth |
| Plug & Play | Yes |
| Made for iPhone | Yes |
| Tag Information Display | Yes |
| Time Code Display | Yes |
| List Access | Yes |
| Album art support | Yes |
| Random Play | Yes |
| Repeat Play | Yes |
| Skip | Yes |
| iAP over Bluetooth | Yes |
| Works with Apple CarPlay | via USB |
Android Phone Control
| Connection via | USB / Bluetooth |
| Works with Android Auto | Via USB |
| Android Open Accessory Protocol | Yes (For Android Auto) |
Audio features
| Max. Output Power | 4 x 50W |
| Primary Power Output | 4 x 22W |
| Pre-out | 2 RCA : FRONT/REAR + SUB(mono) |
| Pre-out Output Level | 2.5V |
| Volume Offset | Yes |
| Volume Type | DSP |
| Built-in Amplifier Off | Yes |
| Balance/Fader Control | Yes |
| Beep On/Off | Yes |
Multimedia DSP Features
| Position Preset | 4 Presets |
| Graphic Equalizer | 13 bands |
| G-EQ manual setting | Yes |
| G-EQ adjustable level | Yes, +9db / -9dB |
| Time Alignment | 0 ~ 610cm |
| HPF Cut Off Frequency | 14 steps |
| HPF Cut Slope Level | 4 steps |
| Low Pass Filter (LPF) | Yes (Non-Fading) |
| LPF Cut Off Frequency | 14 steps |
| LPF Cut Slope Level | 4 steps |
| X'over | Yes |
| Speaker Size Control | Yes |
| Channel Level Control | Yes |
| Loudness | Yes |
| Tweeter volume | Yes |
| Bass Boost | Yes |
| Source Volulme Offset | source independent |

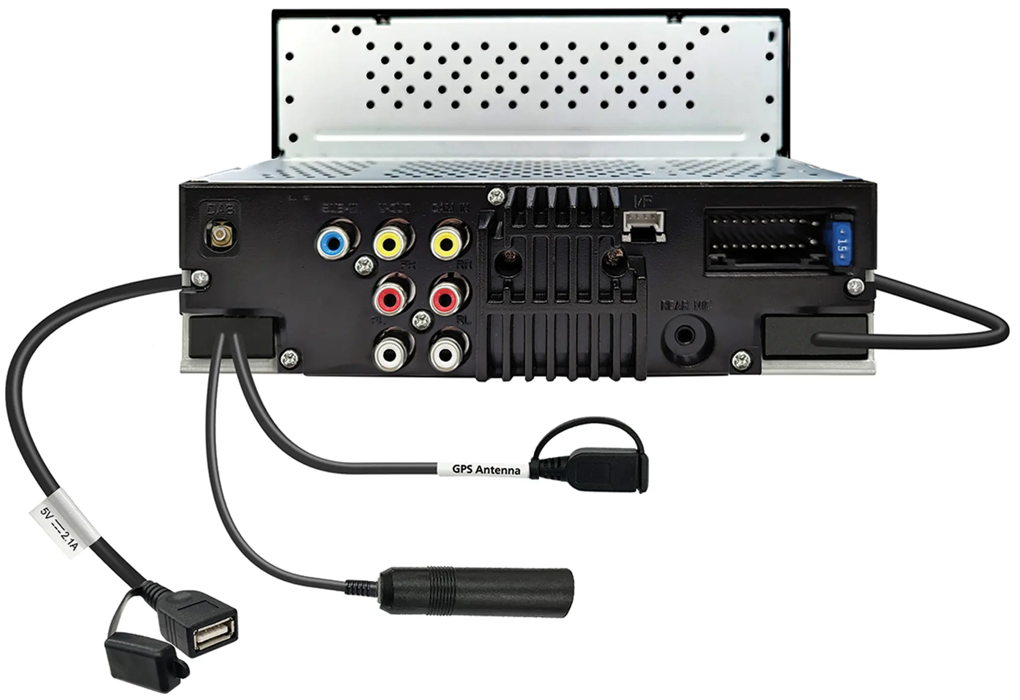

Connectivity
| DC-Cord | 22pin to ISO |
| Reverse sensor wire | Yes |
| Parking sensor (handbrake) wire | Yes |
| Power Control (P.CON) wire | Yes |
| Dimmer control wire | Yes |
| Preout | 2 x RCA (Front/rear) + Sub (mono) |
| AV-Input (Non Switchable) | (Mini-jack) audio & video |
| Video Out | RCA x1 (Source: USB) |
| Rear View Camera Input | Dedicated RCA Video-in |
| GPS Aerial Input | GPS antenna included |
| FM Antenna Input | JASO connector |
| DAB Aerial input | SMB |
| External microphone input | 3,5mm mini-jack |
| OEM Wired Remote Control ready | Yes, Optional interface needed |
| Learning Steering Remote Function | Yes |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 1.8μV/75ohm (S/N 30dBf) |
| FM Frequency Response | 30Hz ~ 14kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 50dB |
| FM Stereo Separation (1kHz) | 35dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 99μV |
DAB Tuner specifications
| Band III - Frequency range | 174.928 MHz - 239.2MHz |
| Mode | Band III |
| Sensitivity | - 98dBm |
| Signal to noise ratio | 82dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC V2 |
| Output Voltage | 14V (10.5V to 16V allowable) |
| Maximum Current | < 100 mA |
Bluetooth specifications
| Technology | Bluetooth V5.0 |
| Frequency | 2.402 - 2.48 GHz |
| Output power | +9 dBm (max), Power Class 1 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes, V 1.8 |
| Advanced audio distribution profile (A2DP) | Yes, V 1.3 |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes, V1.6 |
| Phonebook access profile (PBAP) | Yes, V1.2 |
USB Specifications
| USB Version compatibility | USB 2.0 High Speed |
| File System | FAT 16/32 / exFAT / NTFS |
| Maximum Supply current | 2100mA |
| D/A Converter | 24bit |
| Video Decoder | MPEG1/2/4, WMV, H.264, mkv |
| Audio Decoder | MP3, WMA, AAC, WAV, FLAC |
Audio Specifications
| Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22 W x 4 |
| Output frequency band | 20 Hz ~ 20 kHz |
| Preout Level | 2500 mV / 10 kOhm, |
| Preout Impedance | ≤ 1400 Ohm |
| Speaker Impedance | 4 Ohm ~ 8 Ohm |
Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External Video Input Level (RCA) | 1 Vpp / 75 Ohm |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
Monitor Specifications
| Screen size (Diagonal) | 6.8 Inches Wide |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1843200pixels (1024(H) x 600(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | LED (Light Emitting Diode) |
General Specifications
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Dimensions (WxHxD) | 178 x 100 x 86mm |
| Weight | 1070 gr. |
| Weight, inclu. sleeve & escutcheon | 1.07 kg |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord | 25 cm |
| GPS Antenna Ground Plane Mount (Adhesive Metal Pad) | Yes |
| Multi-Language Instruction Manual Included |
