DMX9724XDSNew

10.1” Floating HD Screen Wireless/Wired CarPlay, Android Auto, Wireless Android Mirroring, DAB+

3-Year Warranty when purchased & fitted by a KENWOOD Pro-Install Dealer

For more information about Pro-Install Dealers & the 3-Year Warranty click the link below.

FIND OUT MORE

Find your nearest Approved Kenwood Centre
Where to Buy

Apple CarPlay – Connect Wirelessly or via USB
Android Auto™ – Connect Wirelessly or via USB
Wireless Mirroring for Android
DAB+ tuner built-in
High Definition Display
HD camera input
Built-in Bluetooth
Modular System
Camera inputs
Rear View Camera Input
Top Menu Customize
Digital Time Aligment (DTA)
Digital Sound Processor (DSP)
Wifi built-in
KENWOOD Remote App Ready
KENWOOD Portal App Ready

Floating Panel Mechanism with 4-Way Position Adjustment

Fully adjustable display allows you to change the depth, height, angle, and left / right for easy vehicle fitment.

Depth: 2steps (0 / 19mm) ■ Height: 4 Steps (0 / 15 / 30 / 45mm) ■ Left/Right: 3 Steps (-30 / 0/ 30mm) ■ Tilt: -10° ~ 45°.

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Apple CarPlay – Split Screen Support

You can view and operate both Apple CarPlay and KENWOOD source in the same screen.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

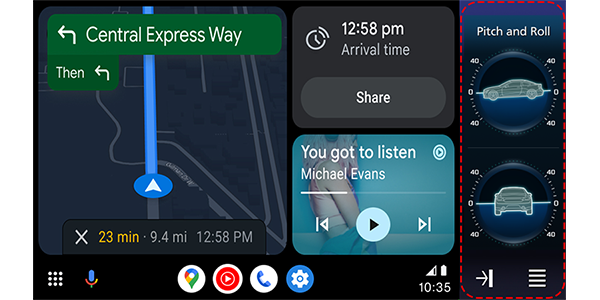

Android Auto – Split Screen Support

You can view and operate both Android Auto and KENWOOD source in the same screen.

Wireless Mirroring for Android

Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your smartphone apps on a KENWOOD receiver screen without cables or a network connection on selected Android devices.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).

Key Features

Large 10.1" High Definition Monitor with Capacitive Touch Panel

Floating Panel Mechanism with 4-way Position Adjustment

Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.

Apple CarPlay® & Android Auto™ – Split Screen Support

Wireless Mirroring for Android

Bluetooth Hands Free & Audio Streaming

DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,

HDMI Input & 4 Camera Inputs: HD Front/Rear Camera Ready + DashCam Link Ready

3 RCA high power (5V) pre-outs • Digital Optical Output

DSP for optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

High Quality Audio Parts Supporting High-Resolution Audio Reproduction

Monitor panel and chassis can be separated, allowing flexible installation in a variety of vehicles.

General Features

DIN Size	1 DIN
Modular System	Yes
Security Code Function ( user set)	Yes, (4 digits)
Selectable GUI Background Wallpaper	Yes
Key Illumination	Variable colour
Installer Memory	Yes
Back-up Memory	Yes
Attenuator with Smooth Volume Return	Yes
Optional IR remote controller	Yes, KNA-RCDV340
Digital Clock (24H)	Yes
Built-in Bluetooth	Yes
DAB Tuner Built-in	Yes
Wifi built-in	Yes
Made for iPhone	Yes
Apple CarPlay – Connect Wirelessly or via USB	Yes
Android Auto™ – Connect Wirelessly or via USB	Yes
Wireless Mirroring for Android	Yes
Firmware upgreadable	Yes
HDMI input	for video playback
Dashcam Link	Yes

Monitor Features

Screen Type	10,1" HD
Display film	Anti-Fingerprint / Anti-Reflection / Anti-Glare)
High Definition Display	Yes
Touch Panel	Capacitive
Display Mode	3 Mode (Full(default)/Auto/Normal)
Screen Adjustments	► Noon & Night Memory. ► Brightness. ► Tint. ► Colour. ► Contrast. ► Black Level. ► Backlight.
Dimmer function	Manual/Sync
Dimmer Level	Sync / On / Off
Visual Source Mode	Mirorring / CarPlay / Android Auto.
Mechanism type	Floating panel with 4-way position adjustment
Panel Tilt Adjustment	-10° ~ +45°
Panel Depth Adjustment	2 steps: 0 / 19mm
Panel Height Adjustment	4 steps: 0 / 15 / 30 / 45mm
Panel Left/Right Adjustment	3 steps: -30 / 0 / 30mm
LCD viewing angle control	"0" (Default) / "-1" / "-2" / "-3"
NTSC/PAL judge	Yes (Auto)
Display Off Mode	Yes

Multimedia GUI Features

Menu text	22 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian
Software updates (SoC)	via USB
Graphics Type	Graphics
Spectrum Analyzer	Yes
Demonstration Mode	Yes
Top Menu Customize	Yes
Opening Screen Type	standard
Preset Wallpaper Type	Yes, 5 presets, 1x user, 1x Sync Album Art, 1x color customize.
Wallpaper colour change	Yes
Multi Widgets	Driving Widget / Full Screen Widget
Animation	Yes
R-CAM interrupt	Yes
R-CAM Caution On Screen Display	Yes
R-CAM Parking Guide Lines	Yes
Front view camera mirror	Yes
DashCam Control (DashCam Link)	Yes
Rapid charge indicator	Yes

Network & Wifi features

WiFi built-in	built-in
Frequency Range	Dual Band (2.4GHz / 5GHz)
IEEE standard	802.11a/b/g/n/ac
Wireless connection for Apple CarPlay	Yes
Wireless connection for Android Auto	Yes
Wireless connection for Android Mirroring	Yes

Tuner Features

Tuner Type	Eagle
FM(RDS) + AM(MW/LW) Tuner	Yes
FM Stereo / Mono Selector	Yes
Tuning mode	Auto1/Auto2/Manual
Up/Down Seek/Scan	Yes
Station Select	Manual / Preset (List)
Tuner Presets (FM/AM)	20 Presets (15FM / 5AM)
Automatic Memory Entry (AME)	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Auto TP search	Yes
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes

CE DAB tuner features

DAB+ tuner built-in	Yes
DAB/DAB+ Band	Band III
DAB-DAB/DAB-FM auto switch	Yes
Seamless DAB-FM blending	Yes
Tuning mode / Seek mode	Auto1/Auto2/Manual
Service preset	15 ch * 1 bank presets,
Alphabet Search	Yes
Service list by alphabet order	Yes
Intelligent seek	Yes, (Service, Ensemble & Component)
Ensemble seek	Yes
Announcement Switching (ASW) Select	Yes
DLS (Dynamic Label)	Yes
DMB Audio (Digital multimedia broadcasting)	Yes
PTY (Programme Type) search	Yes
PTY (Programme Type) watch	Yes
Slide Show	Yes
Soft linking	Yes
Antenna power supply on/off switch	Yes
Digital Radio Certification Mark	Yes

Bluetooth General Features

Module	Shinwa
Hands Free Profile with High Sound Quality	HFP V1.7
2 phones full time connection	Yes
Audio Streaming (A2DP)	Yes, (LDAC / SBC / AAC)
LDAC - High Resolution Audio Streaming	Yes
Max num. of regist. units for A2DP	5 units
Serial Port Profile (SPP)	Yes
Simple Secure Pairing (SSP)	Yes
Phonebook Access Profile (PBAP)	Yes
Audio/Video Remote Control Profile (AVRCP)	Yes, V1.6
Multi Profile Support	Yes
iPhone & Android automatic pairing via USB	Yes
KENWOOD Remote App Ready
KENWOOD Portal App Ready	Yes
KENWOOD Music Mix Support	Yes
Catchphone / Call Waiting	Yes
Private mode	Yes
Noise Canceller	Yes
Echo Canceller	Yes
High-quality noise canceling microphone	Included (rear wired)

Playable Audio File

AAC (*.m4a) files are playable	USB
AAC (*.aac) files are playable	USB
MP3 files are playable	USB
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

CE_Playable Video file

MPEG1/2 files are playable	USB
MPEG4 files are playable	USB
WMV files are playable	USB
H.264 files are playable	USB
mkv files are playable	USB

USB Features

USB Type	1x Type C
USB extension cable supplied	yes, 1m
Yes
Drive Change	Yes
Works with Android Auto	Yes
Works with Apple CarPlay	Yes
Tag Information Display	Yes
Album Art Display	Yes
Repeat/Scan/Random search	Yes
Repeat Play	Folder/File/All
Random play	Folder
Category search	Yes
Link Search	Yes
Last Position Memory / Resume	Yes
Time code display	Yes
USB ports maximum output current	5V / 3.0A

iPhone Features

Connection via:	USB / BT / Wifi
Plug & Play	Yes
Made for iPhone	Yes
Tag Information Display	Yes
List Access	Yes
Album art support	Yes
Music library search	Yes
Alphabet search	Yes
Skip search	Yes
Random Play	Yes
Repeat Play	Yes
Skip	Yes
iPod Accessory Protocol (iAP)	iAP2
iAP over Bluetooth	Yes
Works with Apple CarPlay	Wireless or Wired via USB
Reverse browsing	Yes
Voice Control using Siri.	Yes
Bluetooth Auto Paring for iPhone	Yes
Battery charge + power control	Yes
* Always update to latest Apple firmware

Android Phone Control

Connection via	USB/Wifi/Bluetooth
Works with Android Auto	Wired & Wireless
Android Open Accessory Protocol	Yes (For Android Auto)
Kenwood Smartphone Control	Yes

Audio features

Max. Output Power (MOSFET Power IC)	4 x 50W
Primary Power Output	4 x 22W
Pre-out	3RCA: Front/Rear/Subwoofer
Pre-out Output Level	5V
Volume Offset	Yes
Balance/Fader Control	Yes, (via DSP)
Loudness Control	Yes, By DSP
Bass Boost	Yes, (Via DSP)
Att.(-20dB) with smooth Volume Return	Yes
Equalizer	Yes, 13 Band Graphic EQ
Digital Sound Processor (DSP)	Yes
Digital Time Aligment (DTA)	Yes
Beep On/Off	Yes

Multimedia DSP Features

Car type control	Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
Speaker Size & Location Control	Yes
X'over network	3-Way / 2-way X'over / HPF / LPF
Listening postion control / Time Alignment	Yes
Equalizer type	Graphical
Equalizer	13-Bands
Equalizer presets / User set	8 presets / 4 User set
Balance & Fader Control	Yes
Source Volulme Offset	source independent
Sound Effects	► Bass Boost ► Supreme ► Loudness ► Sound Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer
Audio Setup Memory	Yes

Connectivity

USB interface	Rear Side
DC-Cord	20pin (New Type) to ISO
Reverse sensor wire	Yes
Parking sensor (handbrake) wire	Yes
Power Control (P.CON) wire	Yes
2-way (Tel/Navi) mute wire	Yes
Dimmer control wire	Yes
Speedpuls input wire	Yes
Amplifier pre-out	3 x RCA: Front/Rear/Subwoofer
Digital Optical Output	Yes
AV-Input	1x mini-jack (selectable: AV-in / Camera-in)
AV Output	Video: RCA / Audio: mini-jack
Available AV-Out source	AV-in / Off
Camera inputs	up to 4 camera's
Rear View Camera Input	NTSC or HD-TVI input
Front View Camera Input	selectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
Front Camera / DashCam selectable	Yes
HD camera input	Front & Rear camera input are HD Camera ready
HDMI input	Type-D
Dashcam Link	Yes
GPS Aerial Input	GPS antenna included
FM Antenna Input	JASO connector
DAB Aerial input	SMB connector
External microphone input	3,5mm mini-jack
OEM Wired Remote Control ready	Yes, Optional interface needed
OEM Display Control ready	Yes, Optional interface (KIM) needed
Learning Steering Remote Function	Yes
Display input/output control	Yes

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	0.8μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity	1.6μV/75ohm (S/N 15.2dBf)
FM Frequency Response	30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)	65dB
FM Selectivity(DIN)	over 80dB (±400kHz)
FM Stereo Separation (1kHz)	45dB
MW range: 531kHz - 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	45μV
LW range: 153kHz - 279kHz (9kHz step)	Yes
LW Usable Sensitivity	25μV

DAB Tuner specifications

Band III - Frequency range	174.928 MHz - 239.2MHz
Mode	I, II, III, IV
Sensitivity	- 100dBm
Signal to noise ratio	90dB
Audio format	MPEG1 Audio Layer II, MPEG4 HE-AAC v2
DAB Aerial Connector Type	SMB
Output Voltage	14.4V (11V to 16V allowable)
Maximum Current	< 100 mA

Bluetooth specifications

Technology	Bluetooth V5.0
Frequency	2.402 - 2.48 GHz
Output power	+4dBm(max), power class 2
Maximum range	Line of sight approx. 10 meter
Handsfree profile (HFP)	Yes, V1.7
Serial port profile (SPP)	Yes
Advanced audio distribution profile (A2DP)	Yes
Audio Codec	SBC/AAC/LDAC
Audio/Video remote control profile (AVRCP)	Yes, V1.6
Phonebook access profile (PBAP)	Yes
Multi Profile Support	Yes

USB Specifications

USB Version compatibility	USB 2.0 High Speed
File System	FAT 16/32 / exFAT / NTFS
Maximum Supply current	1500mA
D/A Converter	24/32 bit
Video Decoder	MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
Audio Decoder	MP3/WMA/AAC/WAV/FLAC/Vorbis
S/N Ratio	98.5 dB (1kHz)
Dynamic Range	89dB

Audio Specifications

Maximum Power	50 W x 4
Output Power (DIN45324,+B=14.4v)	22 W x 4
Output frequency band	20 Hz ~ 88 kHz
Preout Level	5000 mV / 1 kOhm,
Preout Impedance	≤ 300 Ohm
Speaker Impedance	4 Ohm ~ 8 Ohm

DSP Specifications

Frequency band	62.5/100/160/ ~ /6.3k/10k/16k Hz
Equalizer Gain	–9db ~ +9db
Time Alignment	0 — 610cm(1 cm step)
Speaker type - Center	► NONE ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER
Speaker type - Front	► O.E.M. ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"
Speaker type - Rear	► NONE ► O.E.M ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"
Speaker type - Sub woofer	► NONE ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over
2-Way X'over / Front/Rear (HPF) / Frequency	Through, 30/40/50/ ~ /220/250 Hz
2-Way X'over / Front/Rear (HPF) / Slope	-6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency	30/40/50/ ~ /220/250 Hz, Through
2-Way X'over / Subwoofer (LPF) / Slope	-6/-12/-18/-24 (dB/oct)
3-Way X'Over / High Pass Filter Frequency	Through, 30/40/50/ ~ /220/250 Hz
3-Way X'Over / High Pass Filter Slope	-12/-18/-24 (dB)
3-Way X'Over / Low Pass Filter Frequency	30/40/50/ ~ /220/250 Hz, Through
3-Way X'Over / Low Pass Filter Slope	-12/-18/-24 (dB/Oct
Subwoofer Level	-50dB ~ 10dB
Car type control	► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van

Video Specifications

Color System of External Video Input	NTSC/PAL
External video input level (mini-jack)	1 Vpp / 75 Ohm
External audio max. input level (mini-jack)	2 Vpp / 25 kOhm
Video input level (RCA)	1 Vpp, 75 Ohms
Video Output Level (RCA)	1 Vpp / 75 Ohm
Audio Output Level (mini-jack)	0.9 Vpp / 10 kOhm
HDMI - VGA input resolution	640x480p @59.94Hz/60Hz
HDMI - 480p input resolution	720x480p @59.94Hz/60Hz
HDMI - 720p input resolution	1280x720p @59.94Hz/60Hz
HDMI - input Audio type	16/20/24-bit Linear PCM

Monitor Specifications

Screen size (Diagonal)	10.1 Inches Wide
Screen Size (WxH)	223.7 x 125.8mm
Display system	AAS (Azimuthal Anchoring Switch) LCD panel
Drive system	TFT Active Matrix System
Number of Pixels	2764800pixels (1280(H) x 720(V) x RGB)
Effective pixels	99.99%
Pixel arrangement	RGB Striped
Back lighting	LED (Light Emitting Diode)

General Specifications

Operating voltage	14.4V (11 ~ 16V Allowable)
Dimensions Monitor unit (WxHxD)	262 x 181 x 52mm
Weight Monitor unit	1.1 kg
Dimensions chassis Unit (WxHxD)	178 x 50 x 158mm
Weight chassis unit	1.3 kg.
Weight Chassis + Monitor	2.4 kg.

Accessories

Bracket	Arm bracket for the monitor unit
DC cord	25 cm
RCA Audio-In/Out Connection Cable	Yes
RCA Video-In/Out Connection Cable	Yes
usb extension cable	Type-C, 1 meter
USB Adaptor	Type-C to Type-A
Screws (Parker-type)	Ø 3 x 6mm, 3 pieces
Pan Head Screw (M-Type)	M4 x 8mm, 8 pieces
Hex Head Screw (M-Type)	M4 x 12mm, 4 pieces
GPS antenna	with 3.5 m cable
GPS Antenna Ground Plane Mount (Adhesive Metal Pad)	Yes
Handsfree Microphone	with 3 m cable
Multi-Language Instruction Manual Included	Quick-Guide + Instruction manual
Manuals Downloadable	Yes

Additional Images

DMX9724XDSNew

10.1” Floating HD Screen Wireless/Wired CarPlay, Android Auto, Wireless Android Mirroring, DAB+

3-Year Warranty when purchased & fitted by a KENWOOD Pro-Install Dealer

Floating Panel Mechanism with 4-Way Position Adjustment

Apple CarPlay – Connect Wirelessly or via USB

Apple CarPlay – Split Screen Support

Android Auto™ – Connect Wirelessly or via USB

Android Auto – Split Screen Support

Wireless Mirroring for Android

4 Camera Inputs

Key Features

General Features

Monitor Features

Multimedia GUI Features

Network & Wifi features

Tuner Features

CE DAB tuner features

Bluetooth General Features

Playable Audio File

CE_Playable Video file

USB Features

iPhone Features

Android Phone Control

Audio features

Multimedia DSP Features

Connectivity

Tuner Specifications

DAB Tuner specifications

Bluetooth specifications

USB Specifications

Audio Specifications

DSP Specifications

Video Specifications

Monitor Specifications

General Specifications

Accessories

Apple Carplay & Android Auto

10.1” Floating HD Screen Wireless/Wired CarPlay, Android Auto, Wireless Android Mirroring, DAB+

9.0" Floating HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+

7.0” Capacitive Screen Wireless/Wired CarPlay, Android Auto, Wireless Android Mirroring, DAB+

6.8” HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+

The Perfect Fit - 9.0” Capacitive Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, FM

6.8” Capacitive Screen Wireless/Wired CarPlay, Android Auto, Wired Android Mirroring, DAB+

6.8” Capacitive Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+

6.8” Capacitive Screen Wired CarPlay, Android Auto, Wired iPhone/Android Mirroring, DAB+

6.8” Capacitive Screen Wired CarPlay, Android Auto, Wired iPhone/Android Mirroring, DAB+
