RadioActivity – the powerhouse behind Kenwood Digital DMR Simulcast Networks and DMR Tier 3 Network infrastructure
► Click to see
Radio Activity case studies
Radio Activity is a dynamic electronics engineering company and part of the JVCKENWOOD Group. The company specialises in the design and manufacture of wired and wireless two-way radio equipment and systems for the professional telecommunications market.
Radio Activity is a DMR Association accredited laboratory for interoperability testing and has developed advanced solutions for analogue and digital radio networks.
Watch KENWOOD introducing KAIROS DMR Repeater – Part 1
An introduction to the technology used within KAIROS repeaters, a brief taster of just some of the functionality available which includes Simulcast (Quasisync) and diversity receivers. Kairos is versatile hardware platform, a software defined radio (SDR) and shows the path for all future base station design. Kenwood are again moving the boundaries in mobile radio technology with increased range, firstly with NXDN technology and now with Diversity receivers.
An intro to Tier III DMR over IP with Kairos Repeaters - Part 2
Kairos – at the heart of Kenwood Digital DMR Simulcast Networks and DMR Tier 3 Network infrastructure

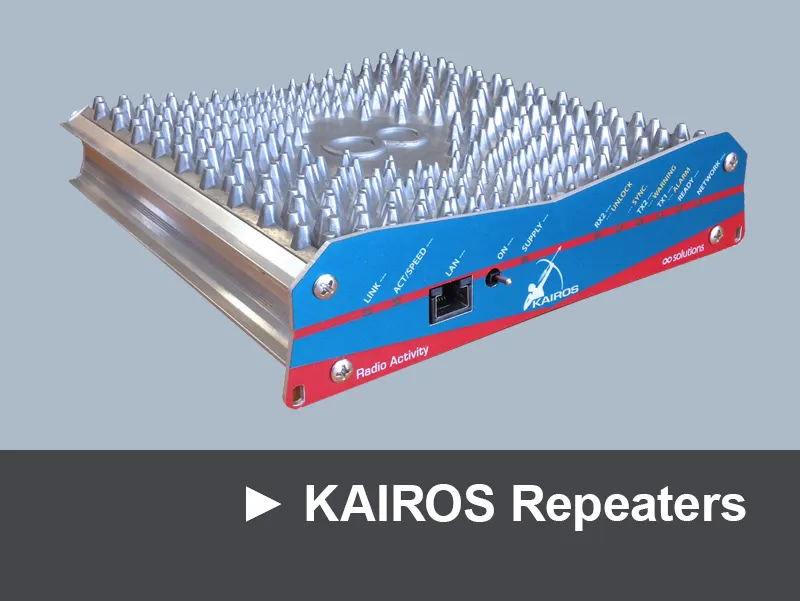

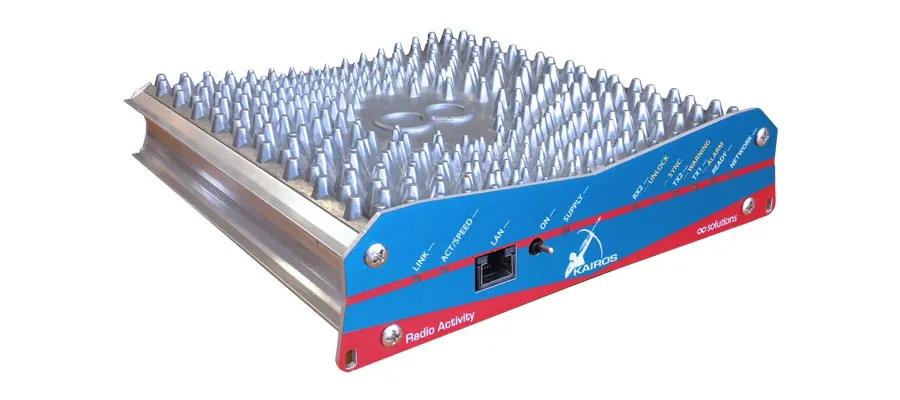

KAIROS is an ETSI compliant multi-protocol repeater that implements all modulation/demodulation and filtering processes through algorithms in the Digital Signal Processor (DSP).
This method provides repeatability, the perfect matching of repeaters and can handle different protocols. The Kairos repeater offers true multi-protocol flexibility as the addition of a new protocol or standard can be achieved with a software upgrade.
The sophisticated software and hardware platform used in KAIROS makes it a powerful and robust Basestation or Repeater. Its LINUX core provides IP interfaces to other devices and networks and allows for a high level of customisation.
KAIROS is designed for infrastructure applications, especially where radio frequency pollution is an issue and offers excellent coverage and clear communications with rejection of adjacent channel interference.
► Click to download
KAIROS brochure

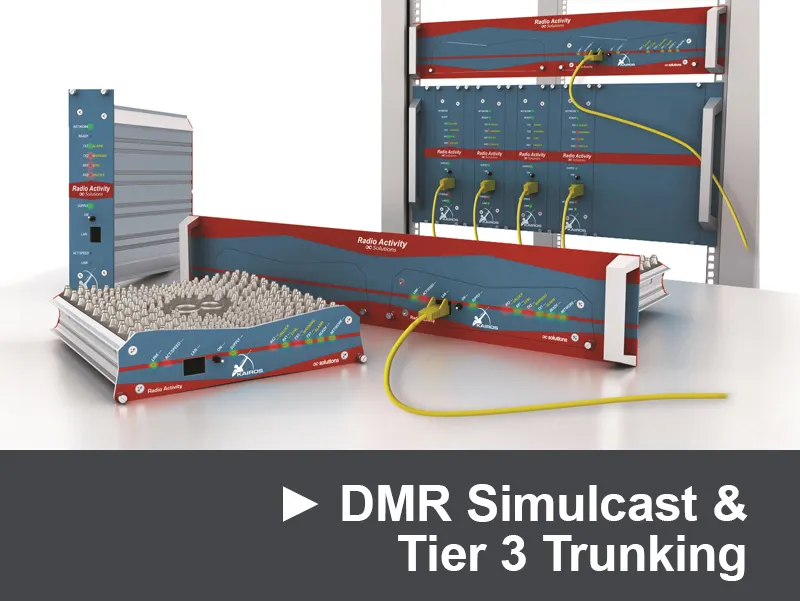

KAIROS System Configurations
A DMR Tier 2 KAIROS based solution using Kenwood DMR hand-portable and mobile radios including the NX-5000 and NX-3000 Series equipment can be configured for both Multi-Frequency and Simulcast operation and supports multi-protocol (analogue/digital) functionality, IP-connected or conventional dispatcher and phone patching and SIP telephony.
-
► Dual Timeslots Fixed Station/Repeater
-
► Analogue and DMR Tier 2 Simulcast or Multi-Frequency IP-linked Base Station
-
► Analogue and DMR Tier 2 Simulcast or Multi-Frequency RF-linked Base Station
-
► Single site DMR TIER 3 Trunked System
-
► Multisite Simulcast or Multi-Frequency DMR TIER 3 Trunked System
*ETSI TS 102 361 DMR refers to three Tiers:
DMR Tier I: Unlicensed
DMR Tier II: Conventional
DMR Tier III: Trunked
