KENWOOD NXR-1700E and NXR-1800E Digital Repeaters

NXR-1700/1800 Compact Repeaters

Compact, Flexible Radio Coverage for Analogue and Digital Systems

The KENWOOD NXR-1700E and NXR-1800E are compact, multi-mode business radio repeaters designed to extend radio coverage and support reliable communications across single-site and multi-site operations.

The NXR-1700E operates on VHF frequencies, while the NXR-1800E operates on UHF frequencies. Both repeaters support FM analogue operation as standard, with optional DMR Tier II or NEXEDGE NXDN digital operation.

Organisations may start with an existing analogue radio system and move to digital communications when their operational needs change. An authorised KENWOOD dealer activates the required DMR or NXDN licence and configures the repeater for the selected digital format.

The compact design fits two repeaters within a 1U 19" rack space. Built-in IP networking, remote management, hot standby support and multi-site connectivity make the NXR-1700E and NXR-1800E suitable for commercial, industrial and public-sector radio systems.

Watch the NXR-1700 & NXR-1800 repeaters





Key Features

The NXR-1700E and NXR-1800E combine flexible radio operation with space-saving installation and IP-based system management.

  • NXR-1700E VHF frequency range: 136–174 MHz
  • NXR-1800E UHF frequency range: 400–470 MHz
  • NXR-1700E Up to 50 W RF output
  • NXR-1800E Up to 40 W RF output
  • 25 W output at 100% duty cycle
  • Up to 32 channels
  • FM analogue operation included
  • Optional DMR Tier II conventional operation
  • Optional NEXEDGE NXDN conventional operation
  • Mixed analogue and digital operation
  • Clear 1.71" OLED display
  • Built-in IP network adaptor
  • IP remote monitoring, control and programming
  • Multi-site conventional IP networking
  • 1+1 hot standby redundancy
  • RF linking between sites
  • Voting repeater and receiver support
  • Digital voice logging interface
  • SIP telephone interface option
  • Encrypted voice and data repeat support
  • Compact installation with two repeaters fitting within a 1U 19" rack space

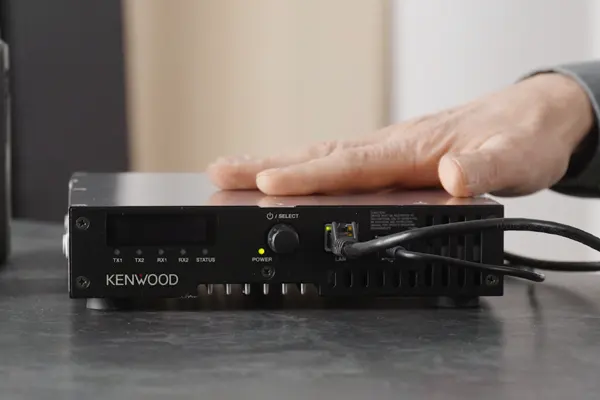

NXR-1700E and NXR-1800E Comparison

NXR-1700E and NXR-1800E Comparison

The NXR-1700E provides VHF operation across 136–174 MHz, with RF output adjustable from 50 W to 1 W. It delivers up to 50 W at a 50% duty cycle or 25 W during continuous operation.

The NXR-1800E provides UHF operation across 400–470 MHz, with RF output adjustable from 40 W to 1 W. It delivers up to 40 W at a 50% duty cycle or 25 W during continuous operation.

Both models provide 32-channel capacity, FM analogue operation and the option to activate either DMR Tier II or NEXEDGE NXDN digital operation. A radio systems dealer will recommend VHF or UHF after reviewing the site, existing frequencies, building construction and coverage requirements.



DMR, NXDN and FM Analogue Operation

FM Analogue

FM analogue operation comes included with the NXR-1700E and NXR-1800E. This provides a practical choice for extending or replacing an existing analogue radio system.

The repeater also supports mixed analogue and digital operation during a phased migration. Organisations may continue using existing analogue radios while introducing compatible digital radios over time.

DMR Tier II

The optional KWD-NX10DC licence activates DMR Tier II conventional operation. DMR uses two-slot TDMA technology within a 12.5 kHz radio channel, supporting efficient use of available radio spectrum.

DMR features include call interruption, encrypted voice and data repeating, IP connectivity and multi-site radio operation.

NEXEDGE NXDN

The optional KWD-NX10NC licence activates NEXEDGE NXDN conventional operation. NXDN uses FDMA technology and supports both 6.25 kHz and 12.5 kHz channel bandwidths.

NXDN features include radio access control, encrypted voice and data repeating, standalone operation and multi-site IP connectivity.

The repeater uses the selected digital format, DMR or NXDN, according to its programming and activated licence. Ask an authorised KENWOOD dealer to confirm the correct format for your radio fleet and operational requirements.

A Planned Move from Analogue to Digital Radio

The NXR-1700E and NXR-1800E provide a structured route from FM analogue to digital radio communications. Organisations may install the repeater for analogue operation, then activate DMR or NXDN when they need greater system capacity, improved audio consistency or additional digital functions.

This approach helps organisations manage equipment replacement across a planned timescale. Compatible KENWOOD radios support mixed-mode fleets during the transition, reducing the need to replace every radio at once.

Multi-Site IP Networking

The built-in IP network adaptor supports communication between repeaters across separate buildings, sites or geographical locations.

With the optional KWD-NX10MS multi-site licence, the system supports up to 16 sites in unicast mode for FM analogue, DMR or NXDN operation. Multicast operation supports wider network configurations, subject to the capacity and design of the IP infrastructure.

IP networking helps organisations create one connected radio system across factories, warehouses, campuses, transport facilities and other distributed operations.

RF Linking Between Sites

The RF Link function transfers calls between locations using radio frequencies when a suitable IP network is unavailable.

This function supports NXDN and DMR inter-site communication. Analogue inter-site voice calls also transfer through a digital RF link configuration, subject to system design and programming.

Remote Repeater Management

IP remote management gives system operators and authorised dealers access to repeater monitoring, control, programming and testing functions through the network.

Supported functions include IP firmware loading, status monitoring, log acquisition, remote control and Simple Network Management Protocol reporting. Quality of Service support uses Differentiated Services Code Point settings to help manage radio traffic across an IP network.

These features support faster fault investigation and reduce the need for routine on-site access.

Hot Standby Redundancy

A 1+1 hot standby configuration provides resilience for communications where repeater availability plays a critical operational role.

The secondary repeater stands ready to support communications if the primary unit develops a fault. This arrangement suits sites where radio downtime would affect safety, security or business operations.

Voting Repeater and Receiver Support

The voting system supports up to 15 voting receivers connected to one voting repeater.

The system compares signals received from different locations and selects the strongest available signal. This helps improve portable radio coverage across large buildings, complex sites and areas with difficult radio conditions.

Voice Logging

The digital Voice Logging Interface transfers radio call packets to a compatible third-party voice recording application.

Voice logging supports organisations which need recorded communications for incident reviews, staff training, operational records or regulatory procedures. NXDN and DMR voice logging use different interface specifications, so the recording system must match the selected digital format.

SIP Telephone Integration

An optional SIP interface connects compatible telephone and radio communication functions.

The KENWOOD KAS-20E AVL and dispatch suite supports group calls from SIP telephones in NXDN and DMR conventional systems. System features depend on the selected licences, software and network configuration.

Encrypted Voice and Data Repeating

The NXR-1700E and NXR-1800E repeat encrypted digital voice and data traffic without removing the protection applied by compatible radios.

Supported encryption depends on the selected digital format, radio models and programming. Options include AES, DES and DMR Enhanced Encryption. An authorised KENWOOD dealer will confirm the suitable security configuration for your organisation.

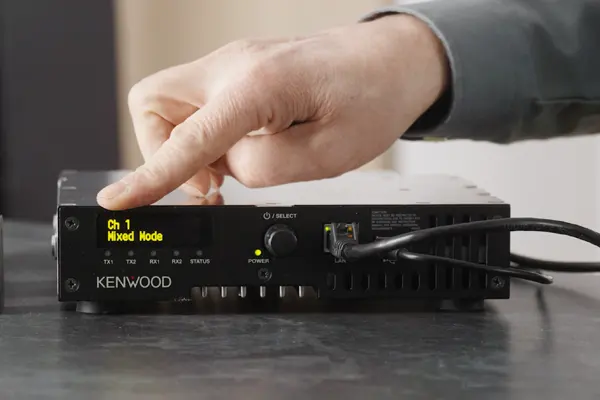

NXR-1700 NXR-1800 compact size

Compact, Space-Saving Installation

Each repeater measures approximately 208.5 mm wide, 44 mm high and 211.5 mm deep, excluding projections, and weighs approximately 1.9 kg.

Two NXR-1700E or NXR-1800E repeaters fit side by side within a single 1U 19" rack space. This reduces equipment cabinet requirements and supports installations where control-room or equipment-room space is limited.

The NXR-1000 Series uses one-quarter of the rack space required by selected earlier KENWOOD repeater models. It also uses half the rack width of a standard 1U 19" repeater.

Repeater racking large
The NXR-1000 Series repeaters require only a quarter of the rack space compared to the NXR-710/810 or TKR-D710/810 Series models.
NX-1000 compact repeater racking
NXR-1000 Series repeaters take up only half the rack space of other 1U repeaters that are 19-inch wide.

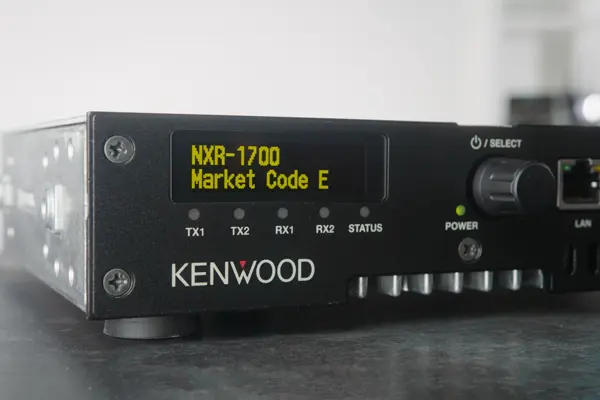

NXR-1700 NXR-1800 repeater usage

Where Are the NXR-1700E and NXR-1800E Used?

The repeaters suit organisations which need wider radio coverage, additional communications capacity or a planned move from analogue to digital radio.

Typical applications include manufacturing plants, warehouses, distribution centres, transport operations, utilities, education campuses, hospitals, hotels, event venues, security operations and local authorities.

A KENWOOD radio systems dealer will assess the site, existing frequencies, coverage area, number of users, building materials, network availability and resilience requirements before recommending a system.

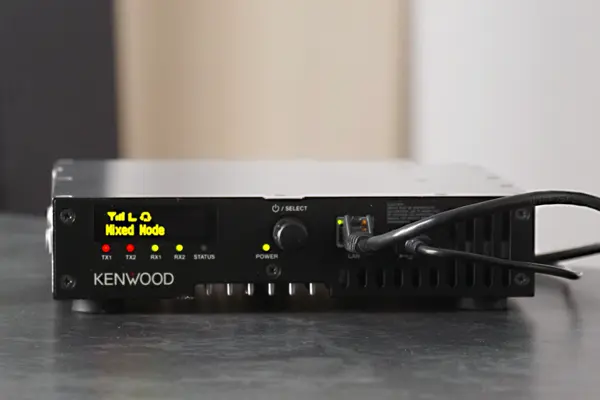

NXR-1700 NXR-1800 repeater compatible radios

Compatible KENWOOD Two-Way Radios

The NXR-1700E and NXR-1800E work with compatible KENWOOD VHF and UHF business radios operating in the same frequency band and programmed radio format.

The KENWOOD NX-1200AE3 VHF and NX-1300AE3 UHF portable radios provide a cost-effective match for analogue systems with a planned move to DMR or NEXEDGE NXDN. Other compatible KENWOOD portable and mobile radios support more advanced digital features and system configurations.

Your KENWOOD dealer will confirm radio compatibility, frequency programming, licences and system configuration.

System Options and Licences

  • FM analogue operation comes included with the repeater.
  • KWD-NX10DC activates DMR Tier II conventional operation.
  • KWD-NX10NC activates NEXEDGE NXDN conventional operation.
  • KWD-NX10MS activates multi-site conventional IP networking.

Other interfaces, applications and functions need additional licences or compatible third-party equipment. Speak to an authorised KENWOOD dealer for current licence availability and system requirements.



Specify Your KENWOOD Repeater System

Every repeater installation needs suitable frequency planning, antenna equipment, coverage assessment, programming and regulatory approval.

Contact an authorised KENWOOD Communications dealer to discuss the NXR-1700E or NXR-1800E. Your dealer will assess your coverage requirements, radio fleet, operating format, IP network and resilience needs before recommending a complete system.



NXR-1700 & NXR-1800 Frequently Asked Questions

  • What are the KENWOOD NXR-1700E and NXR-1800E?

    The KENWOOD NX-1000 Series is a range of professional portable radios, in-vehicle mobile radios and compact repeaters. The range supports DMR, NEXEDGE NXDN and FM analogue communication across VHF and UHF models.

  • Does the NX-1000 Series Support DMR and NXDN?

    The NXR-1700E and NXR-1800E are compact, multi-mode business radio repeaters. They extend two-way radio coverage and support FM analogue, optional DMR Tier II or optional NEXEDGE NXDN operation.

  • Do the NXR-1700E and NXR-1800E support DMR?

    Yes. The optional KWD-NX10DC licence activates DMR Tier II conventional operation. A KENWOOD dealer will activate the licence and programme the repeater for the required radio system.

  • Do DMR and NXDN operate at the same time?

    The repeater uses the selected DMR or NXDN digital format according to its licence and programming. An authorised KENWOOD dealer will configure the correct format for your radio fleet.

  • Is mixed analogue and digital operation supported?

    Yes. Mixed-mode operation supports analogue and the selected digital format during a planned migration. This lets organisations introduce compatible digital radios while continuing to use existing analogue radios.

  • Do the repeaters support multi-site radio systems?

    Yes. The optional KWD-NX10MS licence supports multi-site conventional IP networking. Unicast systems support up to 16 sites, while multicast capacity depends on the IP network design and equipment.

  • Do the repeaters support remote management?

    Yes. The built-in IP network adaptor supports remote monitoring, control, programming and status reporting. Access and available functions depend on the system configuration and network permissions.

  • What is hot standby redundancy?

    Hot standby uses a secondary repeater to support the radio system if the primary repeater develops a fault. A 1+1 configuration provides added resilience for operationally important communications.

  • Do the repeaters support voice recording?

    The digital Voice Logging Interface transfers radio call packets to a compatible third-party voice recording application. The recording solution must support the specifications used by the selected DMR or NXDN format.

  • Do the repeaters support encrypted radio calls?

    The repeaters support encrypted voice and data repeating in compatible digital systems. Available encryption depends on the DMR or NXDN format, connected radios, licences and programming.

  • Which radios work with the NXR-1700E and NXR-1800E?

    Compatible KENWOOD portable and mobile radios must use the same frequency band and operating format as the repeater. The NX-1200AE3 VHF and NX-1300AE3 UHF portable radios provide suitable options for analogue systems moving towards DMR or NXDN.

  • How do I choose between VHF and UHF?

    The right frequency band depends on the site, building construction, existing frequencies, coverage area and operational environment. A KENWOOD dealer will complete a system assessment before recommending the NXR-1700E VHF or NXR-1800E UHF model.

  • Do I need a radio licence to use a repeater?

    Most business radio repeater systems require an appropriate business radio licence. Your KENWOOD dealer will advise on frequency planning, licensing and system configuration.

  • How do I specify an NXR-1700E or NXR-1800E system?

    Contact an authorised KENWOOD Communications dealer with details of your site, coverage needs, user numbers, existing radios and preferred operating format. The dealer will design, programme and install a system suited to your organisation.
